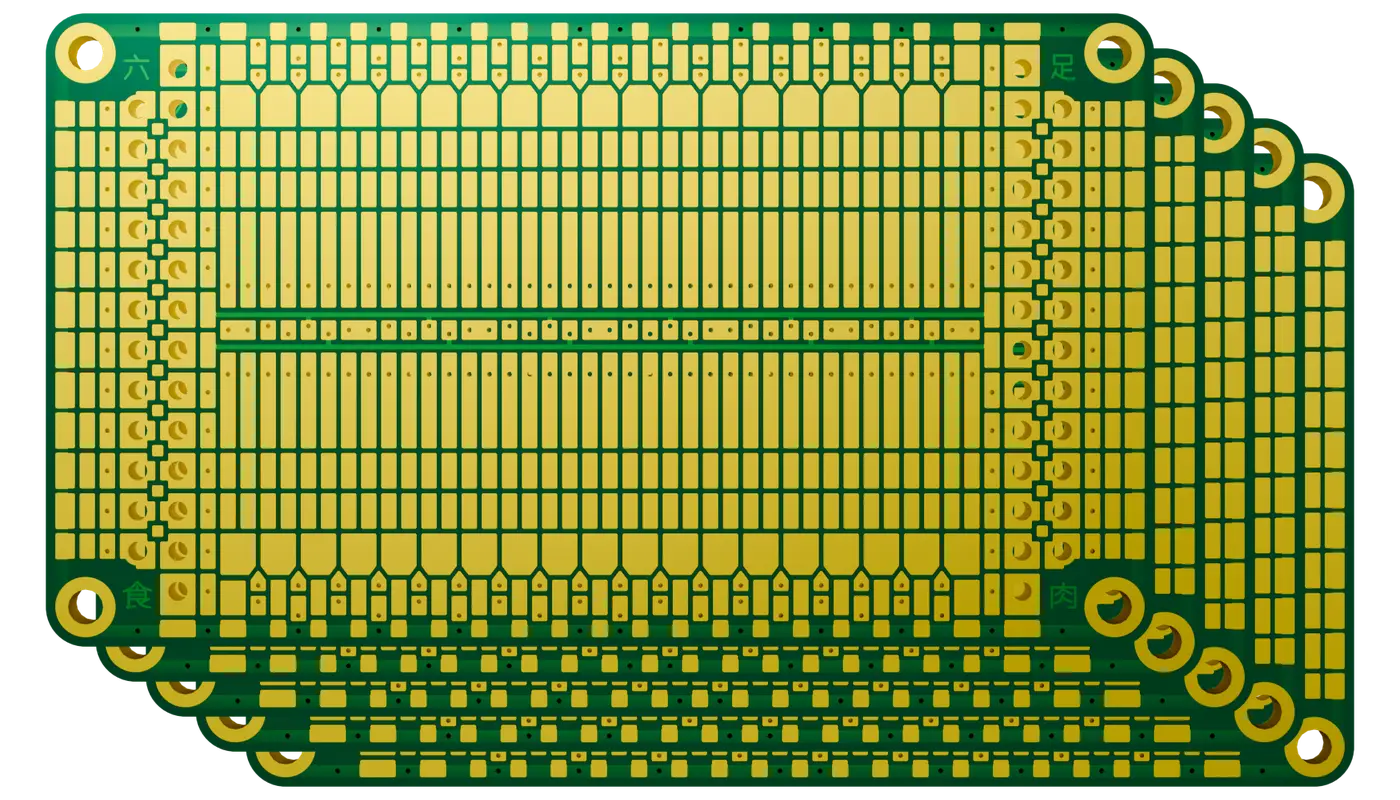

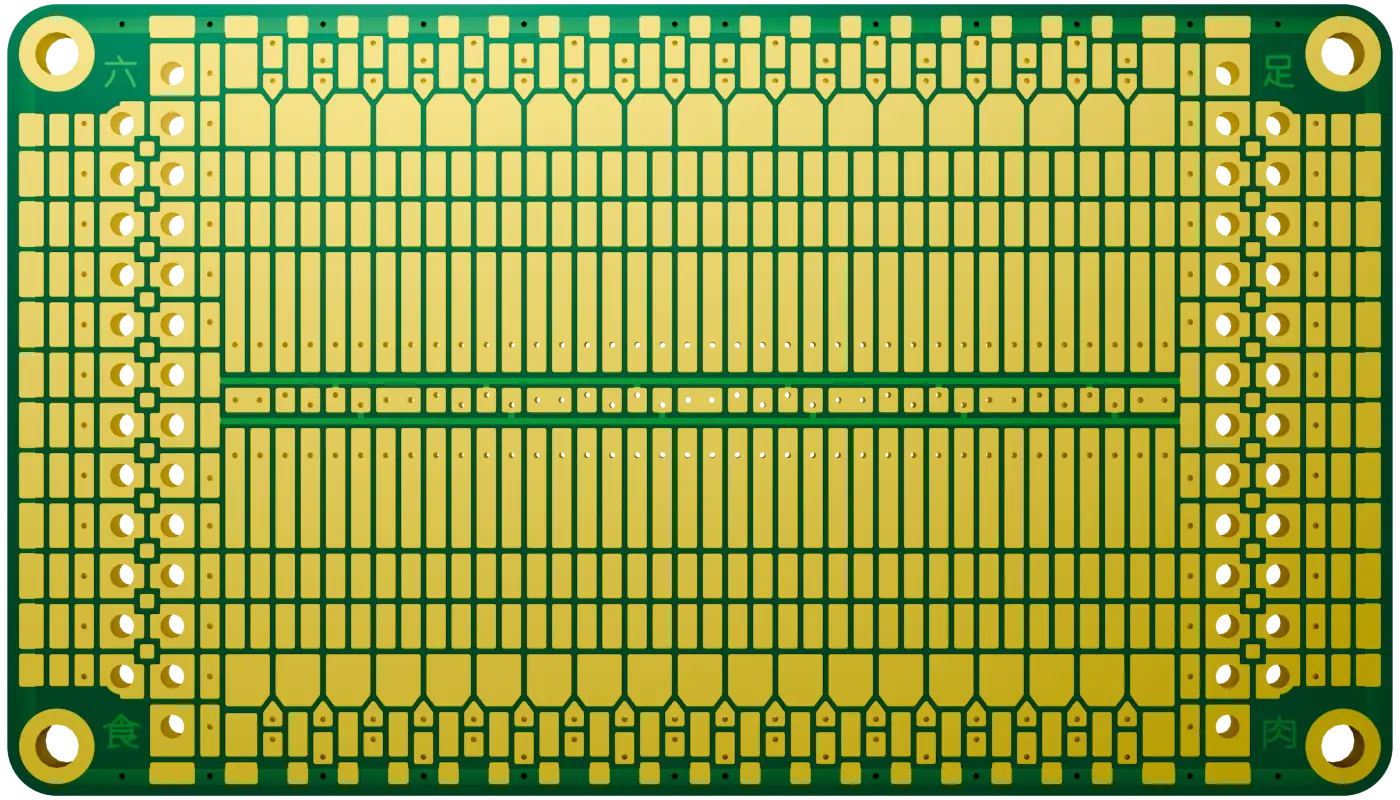

carnival W boards for surface mount prototyping.
carnival W boards are a wider version of carnival A. carnival W suits 300 mil wide SOIC packages such as SOIC-{18,20,24}, as well as hexapod crowns.

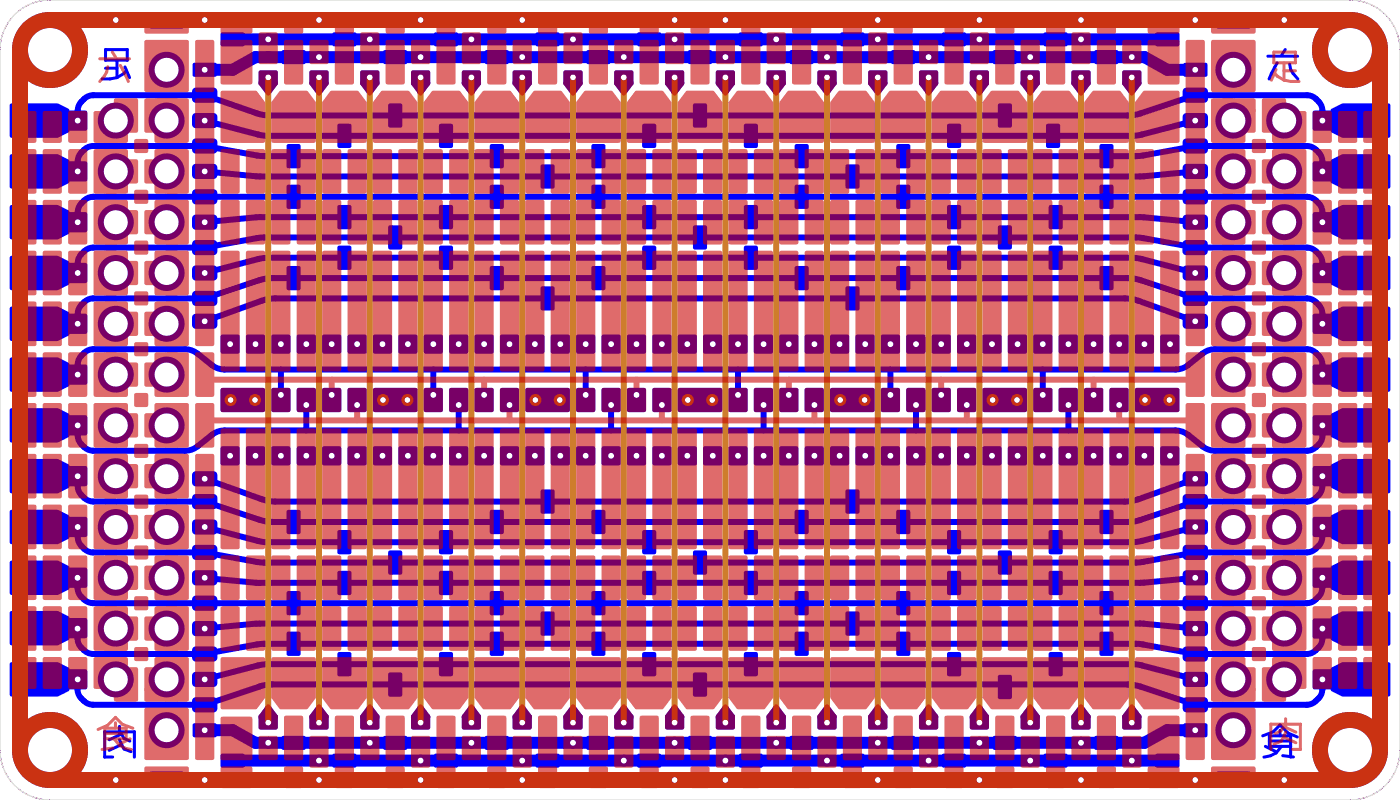

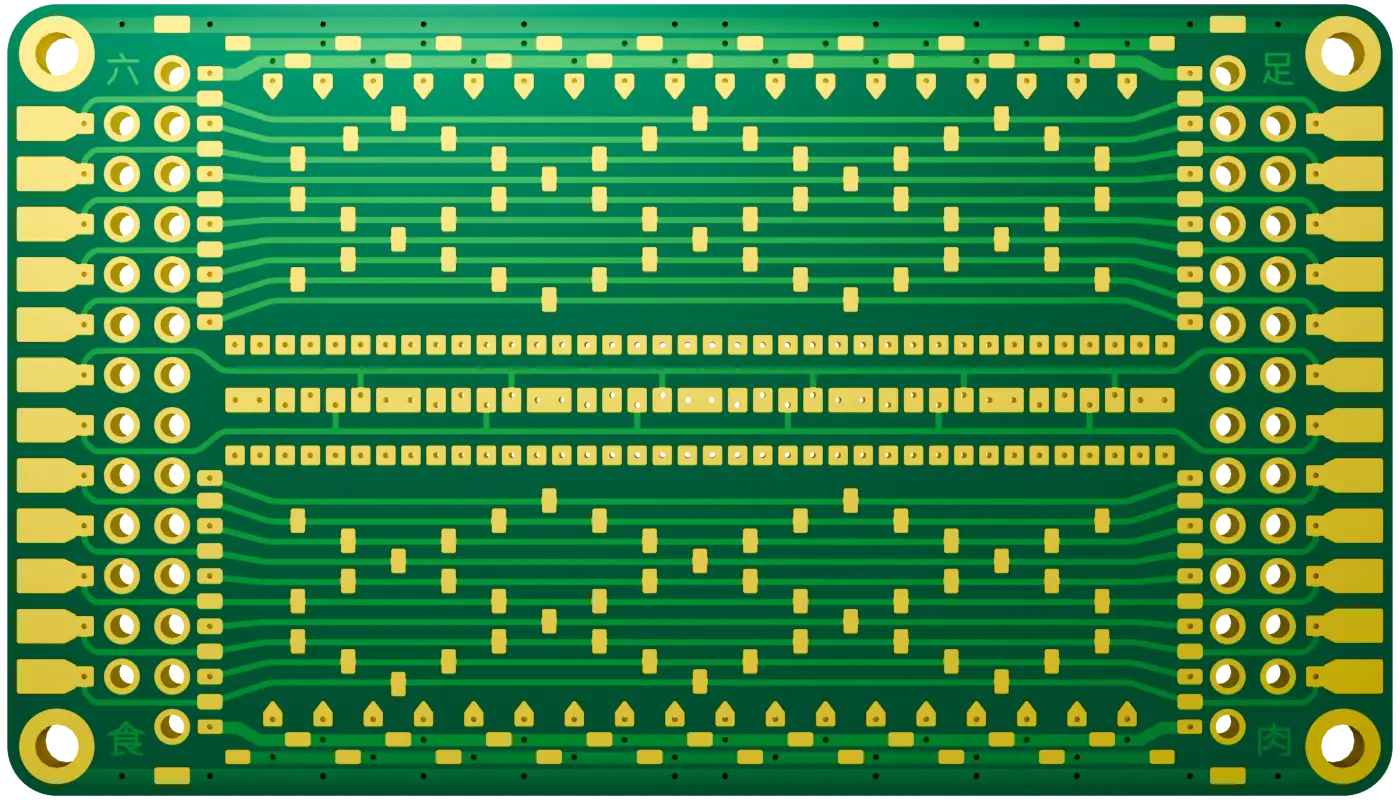

carnival prototyping boards have a 4-layer design where the central pads are connected through to the back side of the board using vias-in-pads PCB fabrication technology. Once an IC is soldered to the front of the board, the matching pads on the back make it easy to route signals to through-hole connections on the left and right. carnival boards also have top-bottom connectivity via opposing teeth. carnival boards are good for logic and microcontroller circuits where a large fraction of the IC pins will be connected to through-hole headers.
Use the carnival W design template (PDF) to layout your circuits.
| part number | HXP-CAW2-G-MG |
| board size | 70 x 40 x 1.6mm |
| surface finish | ENIG |
| solder mask color | matte green |
| through-hole spacing | 100 mil (2.54mm) |
| central pad pitch (center to center) | 50 mil (1.27mm) |
| central pad gap (copper to copper) | 12 mil (0.305mm) |
PCB only. The other components shown in examples are not included.

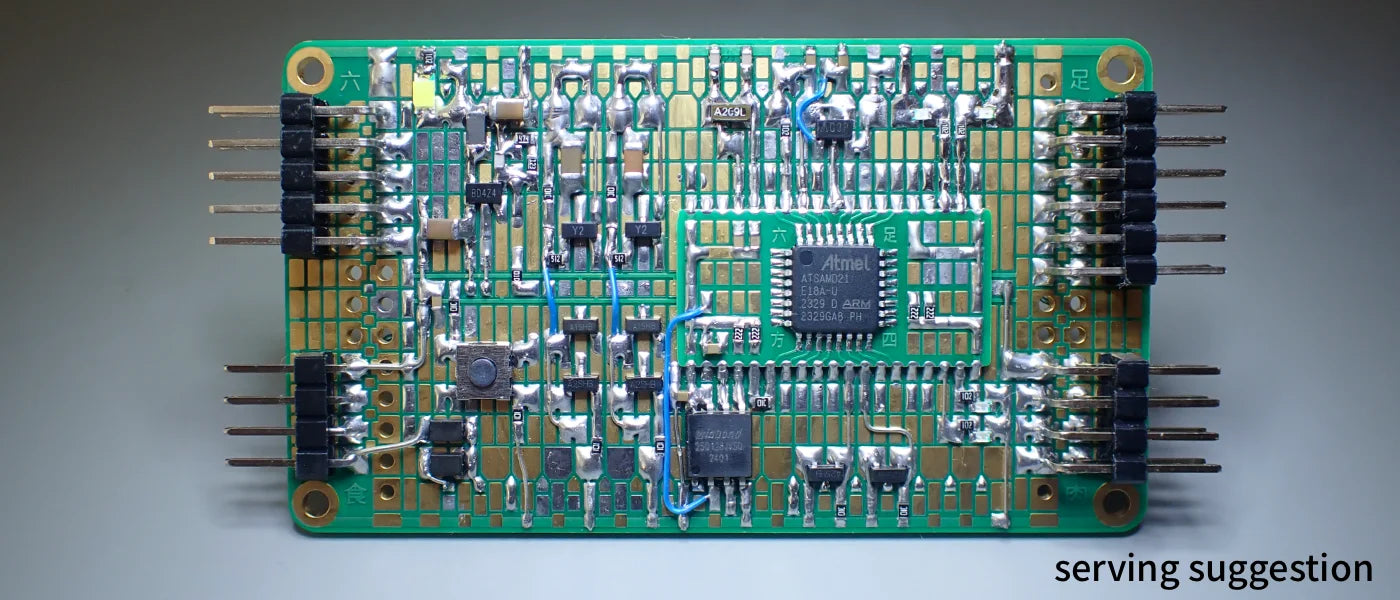

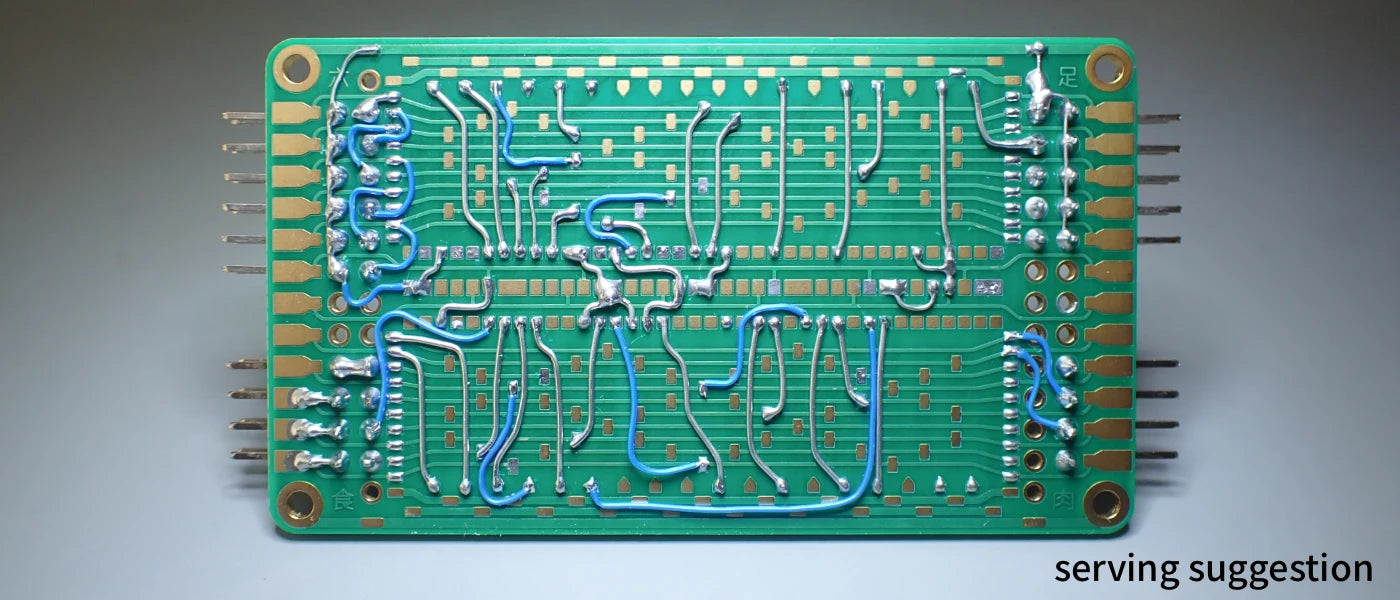

Also shown is the crown QFP32 0.8mm adapter to connect the QFP microcontroller package, an Atmel ATSAMD21E18A.
