SMD Starter Kit: Logic
SMD Starter Kit: Logic
Regular price
$54.50 AUD
Regular price
Sale price
$54.50 AUD
Unit price
per
Taxes included.
In stock
Couldn't load pickup availability

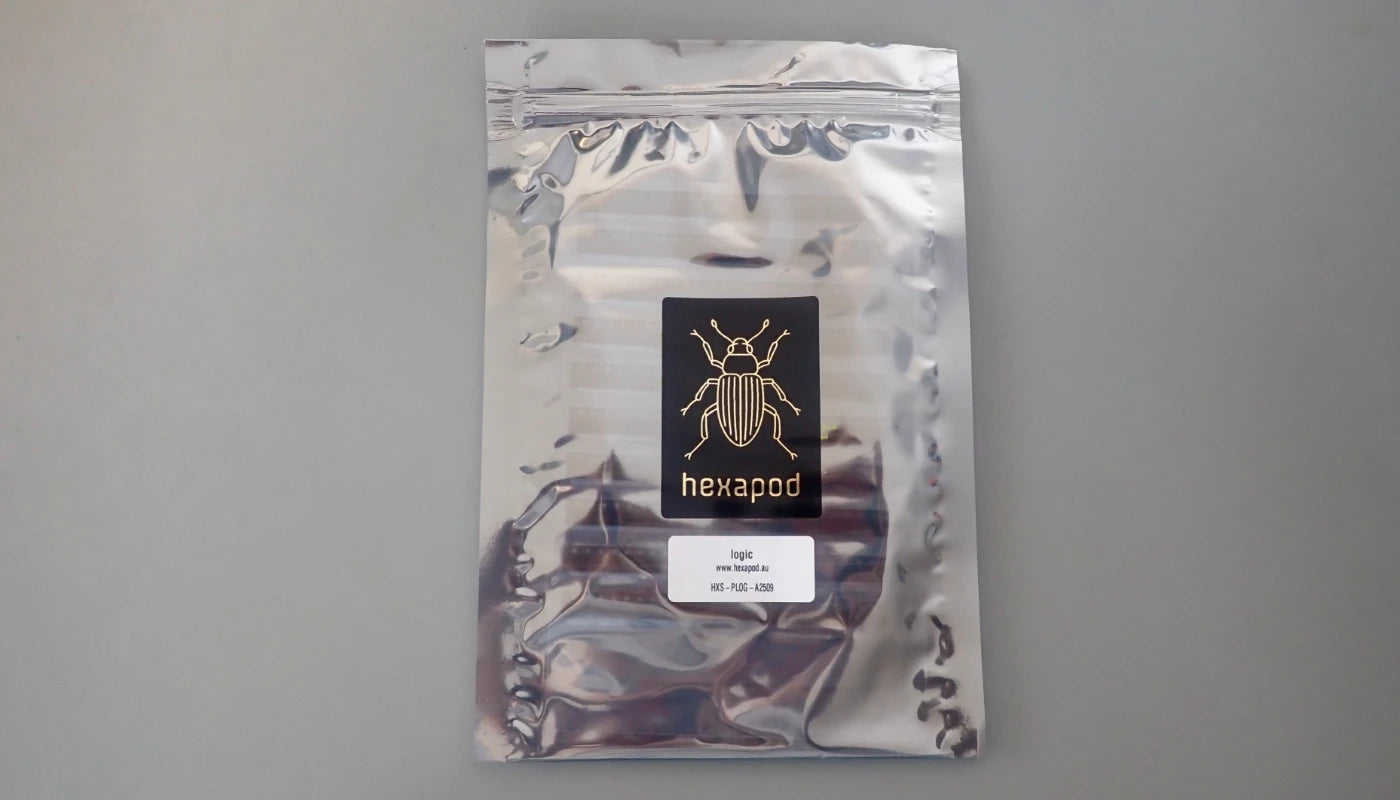

SMD (Surface Mount Device) starter kit of foundational logic gates, in SOT-23-X packages, suitable for hand soldering. The full kit has 250 parts in total.

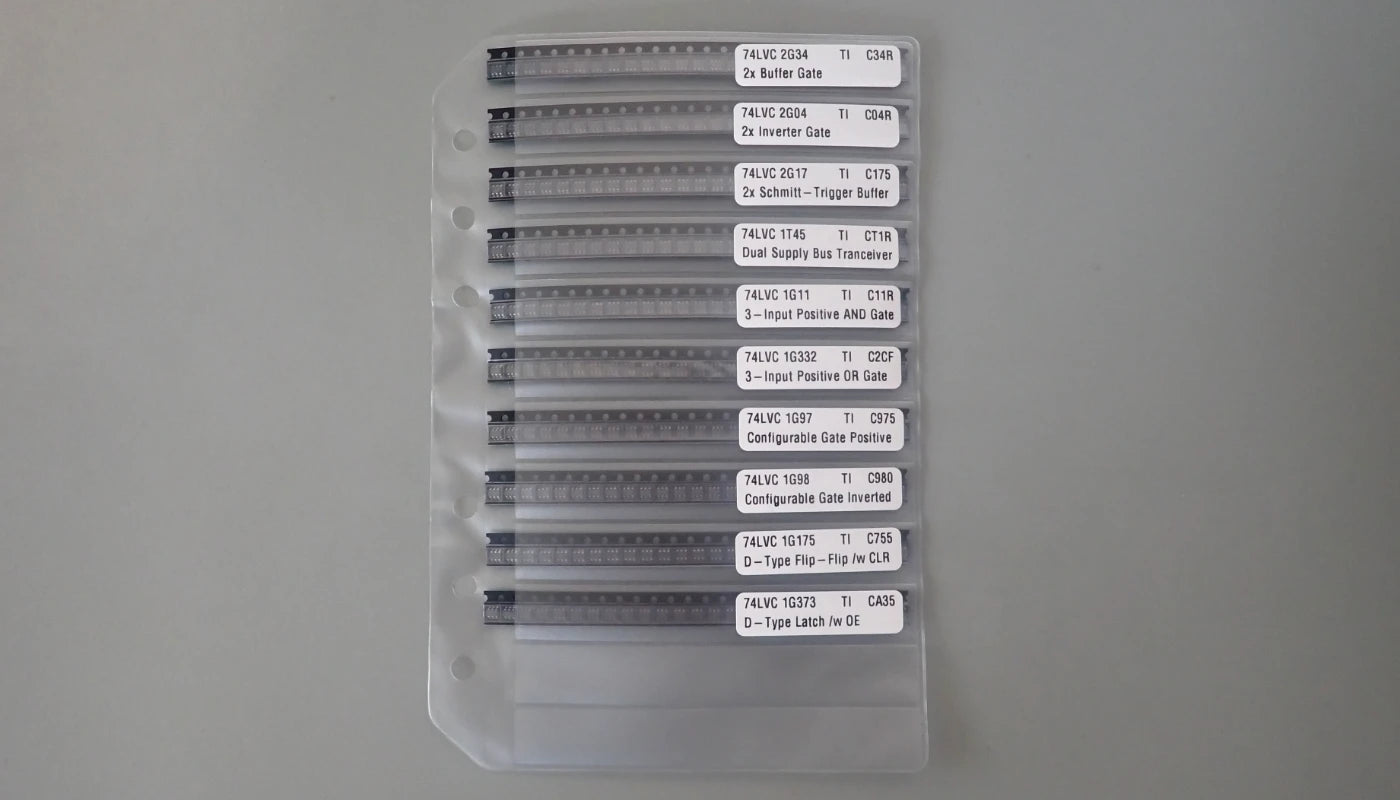

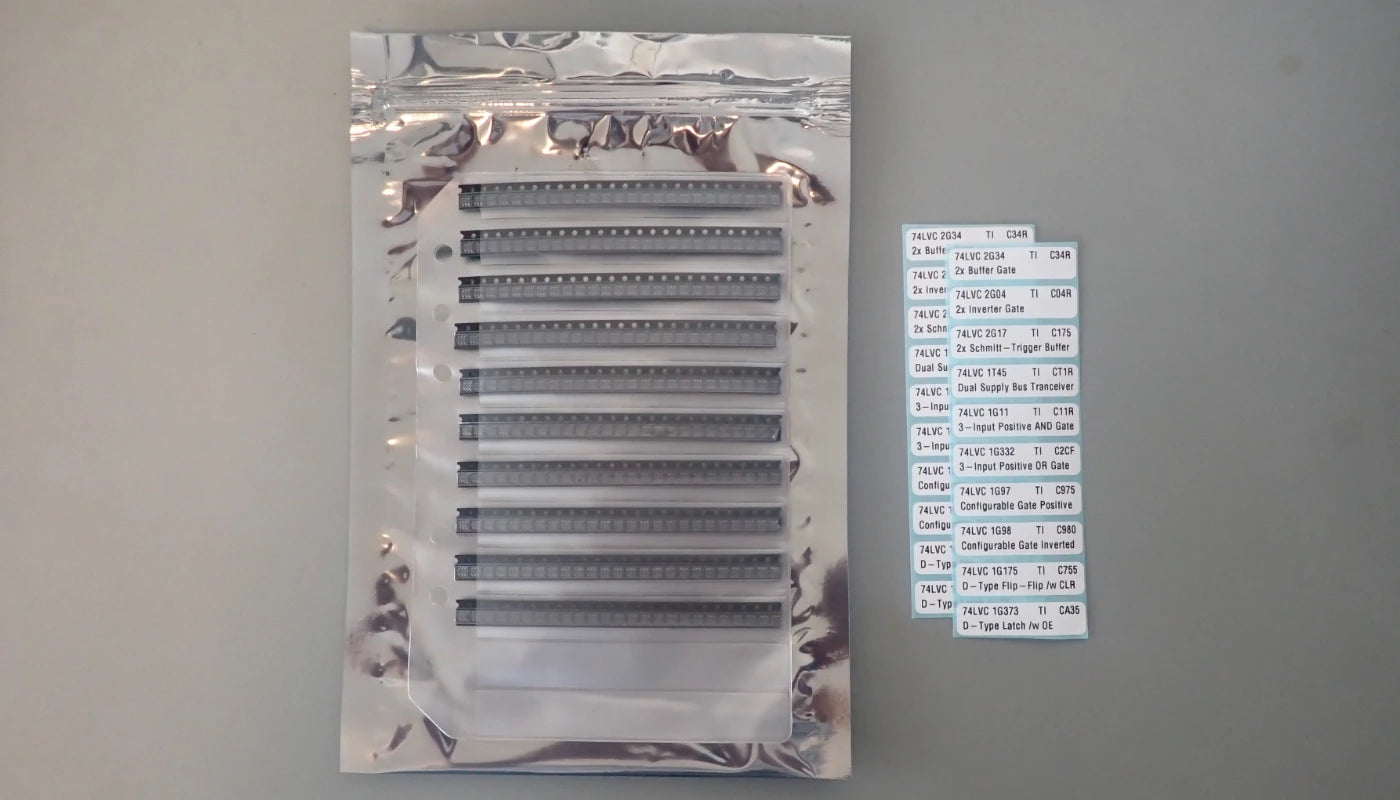

The components are supplied in translucent pages for a B5 SMD ring binder. The kit includes two separate sets of stickers so you can choose your desired order for the components.
All gates use the LVC logic family, which supports a supply voltage of 1.65 to 5.5V. The inputs are 5.5V capable even when the supply voltage is lower, which helps interface between low voltage microcontrollers and TTL (5V) peripherals.
| part number | HXS-PLOG-A2509 |
| data sheets | on github |
All manufactured by Texas Instruments.
| count | part number | marking | name |
| 25 | 74LVC 2G34 | C34R | 2x Buffer Gate |
| 25 | 74LVC 2G04 | C04R | 2x Inverter Gate |
| 25 | 74LVC 2G17 | C175 | 2x Schmitt-Trigger Buffer |
| 25 | 74LVC 1T45 | CT1R | Dual Supply Bus Tranceiver |
| 25 | 74LVC 1G11 | C11R | 3-Input Positive AND Gate |
| 25 | 74LVC 1G332 | C2CF | 3-Input Positive OR Gate |
| 25 | 74LVC 1G97 | C975 | Configurable Gate Positive |
| 25 | 74LVC 1G98 | C980 | Configurable Gate Inverted |
| 25 | 74LVC 1G175 | C755 | D-Type Flip-Flip /w CLR |
| 25 | 74LVC 1G373 | CA35 | D-Type Latch /w OE |
