bones X proto

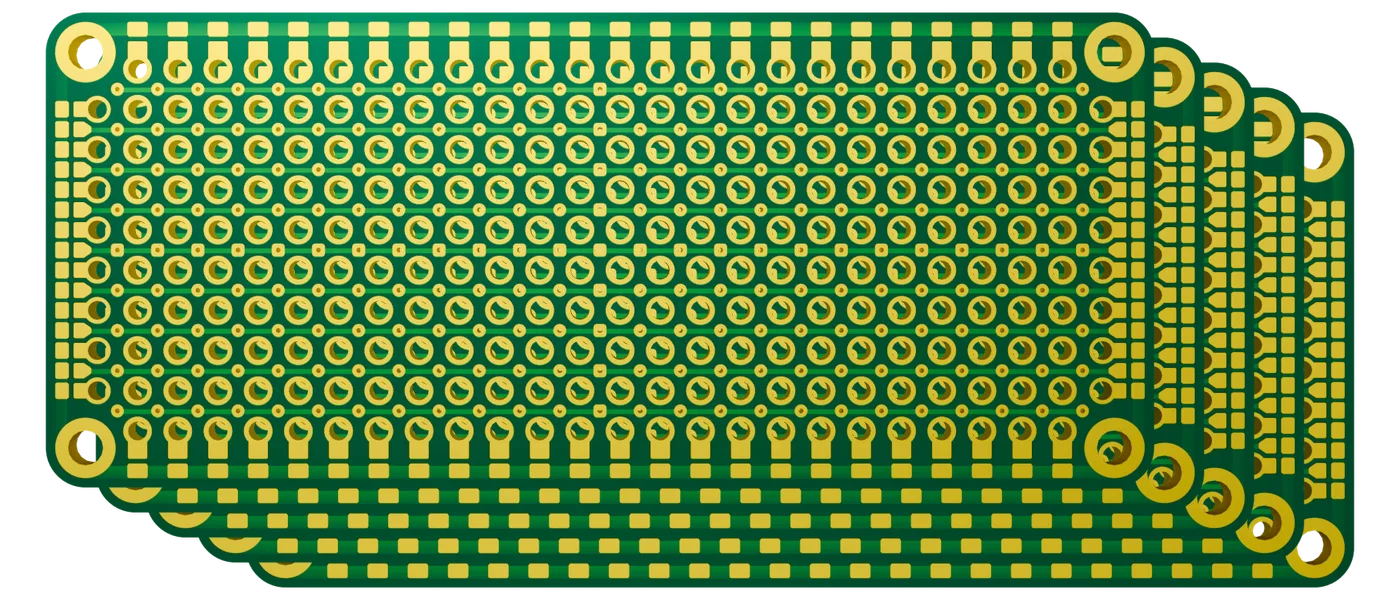

bones X boards for mixed through-hole / surface mount prototyping.

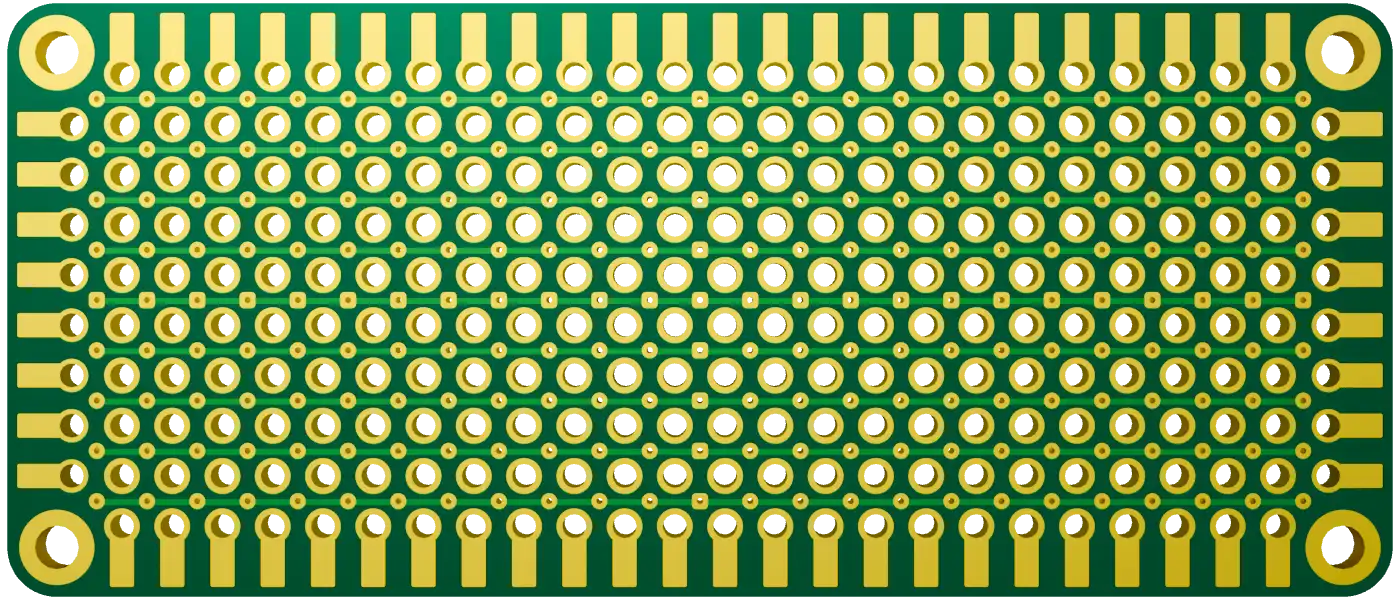

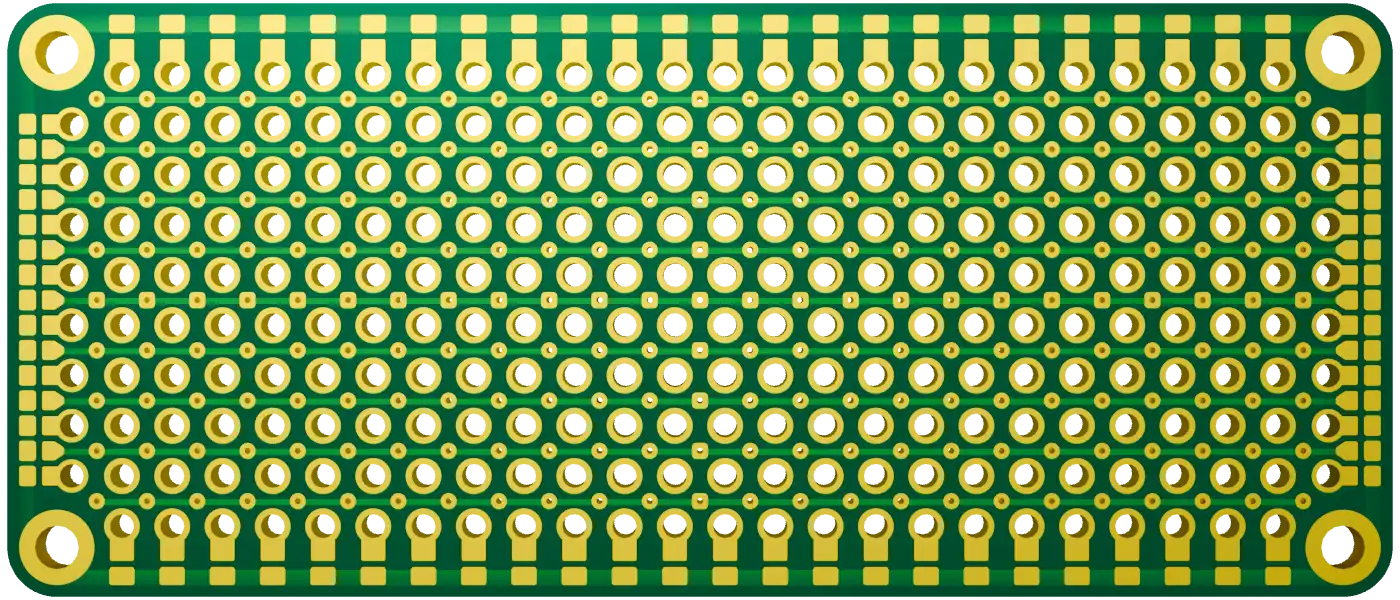

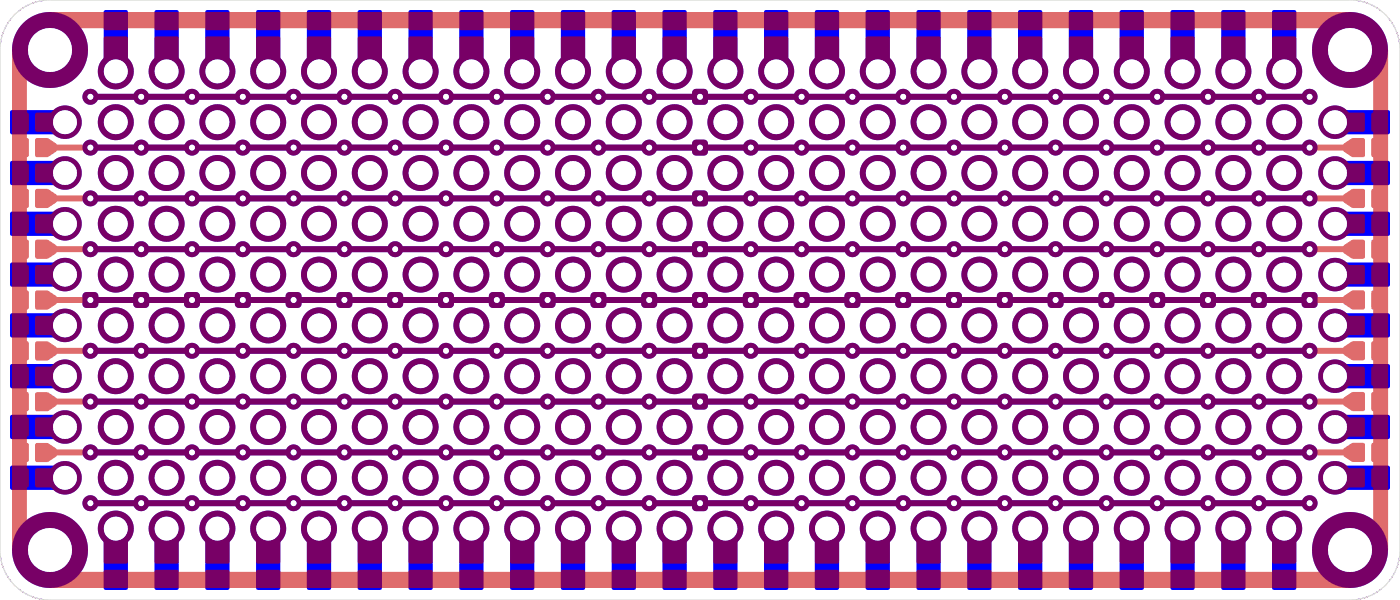

bones X prototyping boards provide the common 100x100 mil through-hole grid, interleaved with a second offset grid. The offset grid is connected horizontally across the board to help build backplane style circuits.

Use the bones X design template (PDF) to layout your circuits.

part number	HXP-BXA1-G-MG
board size	70 x 30 x 1.6mm
surface finish	ENIG
solder mask color	matte green
through-hole spacing	100 mil (2.54mm)

PCB only. The other components shown in examples are not included.
