SMD Starter Kit: Passives

SMD Starter Kit: Passives

$8.50 AUD
$8.50 AUD
Sale Sold out
Taxes included.

In stock

SMD (Surface Mount Device) starter kit of common passive components in 0603 and 1206 packages, suitable for hand soldering.

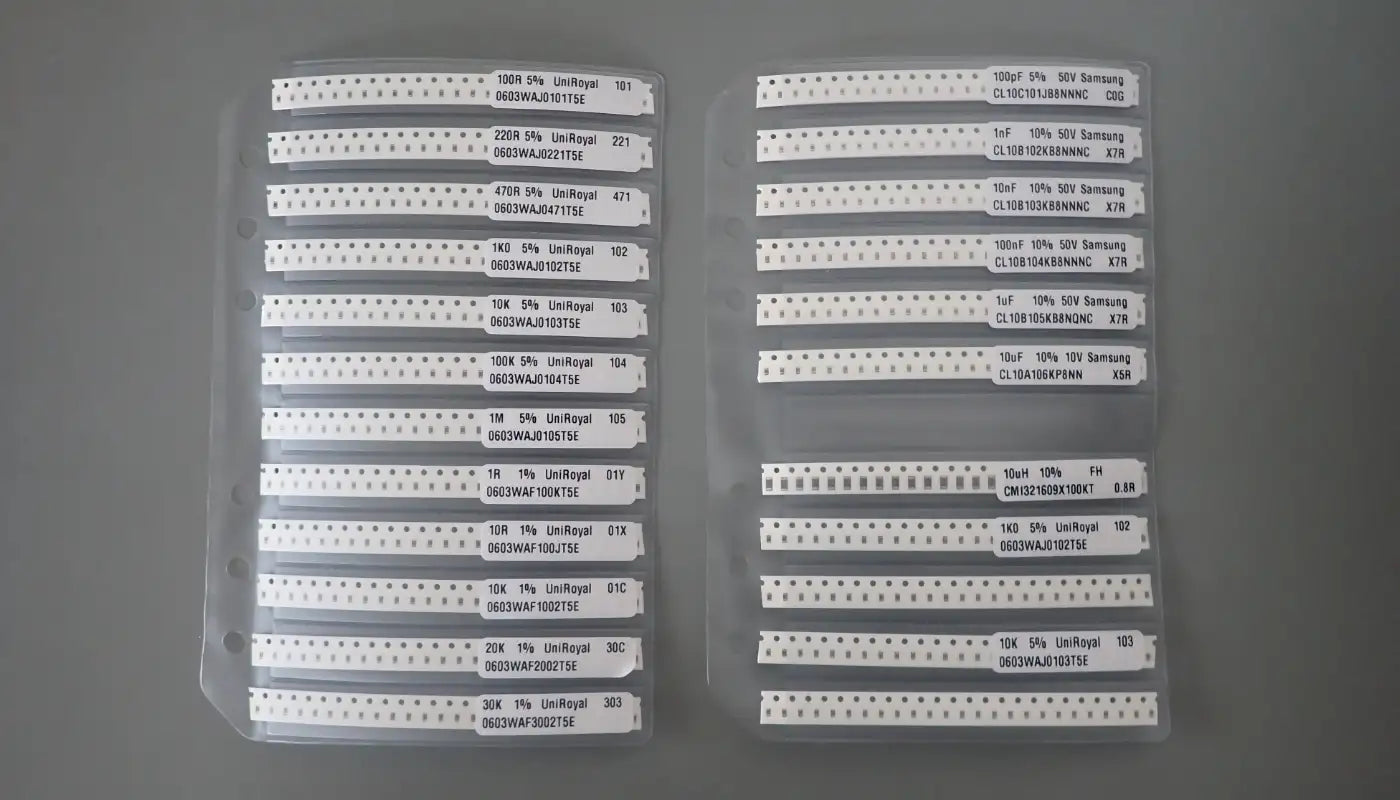

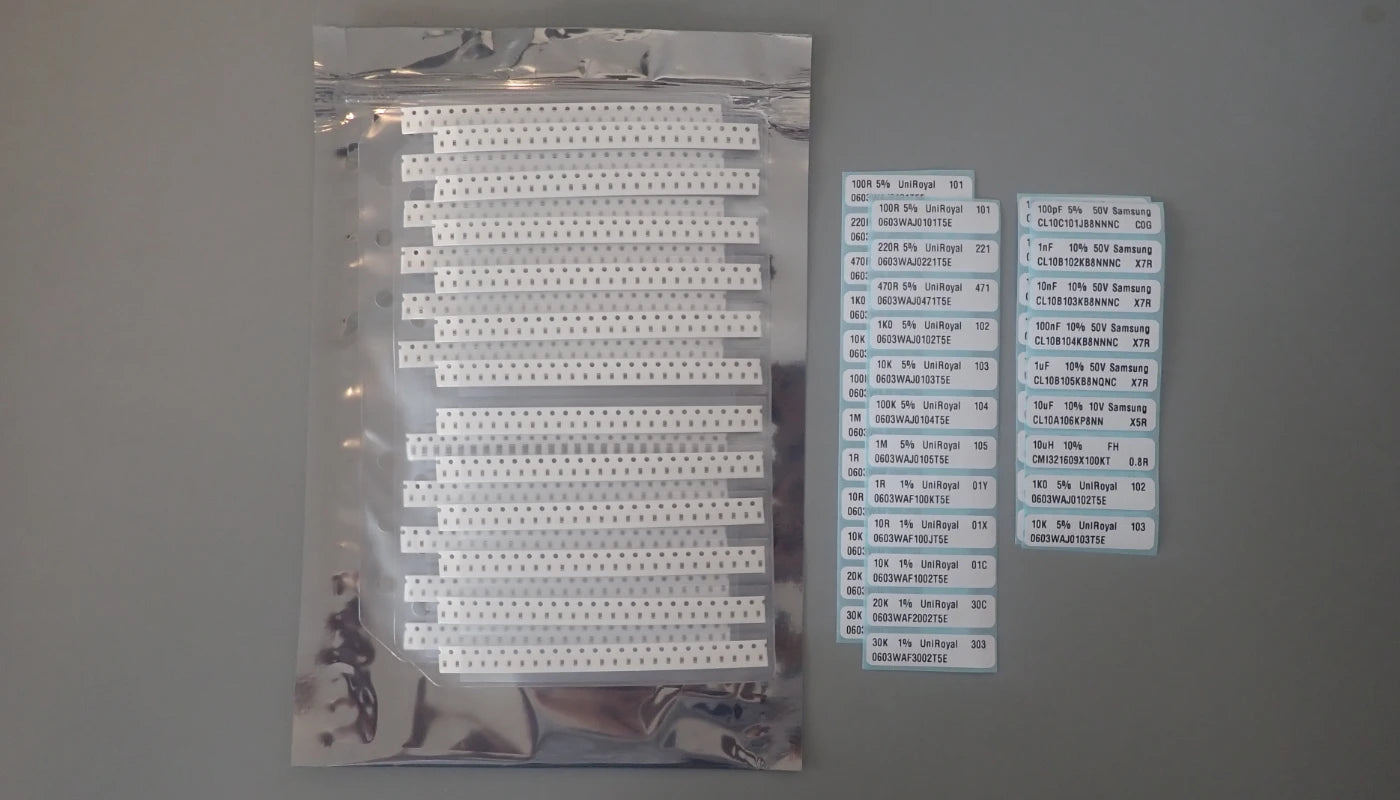

The components are supplied in translucent pages for a B5 SMD ring binder. The kit includes two separate sets of stickers so you can choose your desired order for the components. Order them by value or tolerance, or some other way.

part number HXS-PPAS-A2509
data sheets on github

Resistors

These are the most common resistors values used when building prototype circuits, in 0603 packages. Values of 100R, 220R, 470R and 1K0 are typical for current limiting in LED and charge/discharge circuits. Values 10K, 100K, 1M are typical for pull up/down resistors. Values 1R and 10R are typical for a current shunts. Values 10K, 20K, 30K are typical when setting gain values in amplifier circuits.

All manufactured by UniRoyal / Royal Ohm.

count part number value marking
25 0603WAJ0101T5E 100R 5% 101
25 0603WAJ0221T5E 220R 5% 221
25 0603WAJ0471T5E 470R 5% 471
75 0603WAJ0102T5E 1K0 5% 102
75 0603WAJ0103T5E 10K 5% 103
25 0603WAJ0104T5E 100K 5% 104
25 0603WAJ0105T5E 1M 5% 105
25 0603WAF100KT5E 1R 1% 01Y
25 0603WAF100JT5E 10R 1% 01X
25 0603WAF1002T5E 10K 1% 01C
25 0603WAF2002T5E 20K 1% 30C
25 0603WAF3002T5E 30K 1% 303

Capacitors

A six decade range of ceramic capacitors, in 0603 packages. These are the typical values used for power decoupling and timing elements.

All manufactured by Samsung.

count part number value rating dielectric
25 CL10C101JB8NNNC 100pF 5% 50V C0G
25 CL10B102KB8NNNC 1nF 10% 50V X7R
25 CL10B103KB8NNNC 10nF 10% 50V X7R
25 CL10B104KB8NNNC 100nF 10% 50V X7R
25 CL10B105KB8NQNC 1uF 10% 50V X7R
25 CL10A106KP8NN 10uF 10% 10V X5R

Inductor

An inductor that can be used for buck/boost converters, in a 1206 package.

Manufactured by Fenghua (FH)

count part number value RDC
25 CMI321609X100KT 10uH 10% 0.8R
