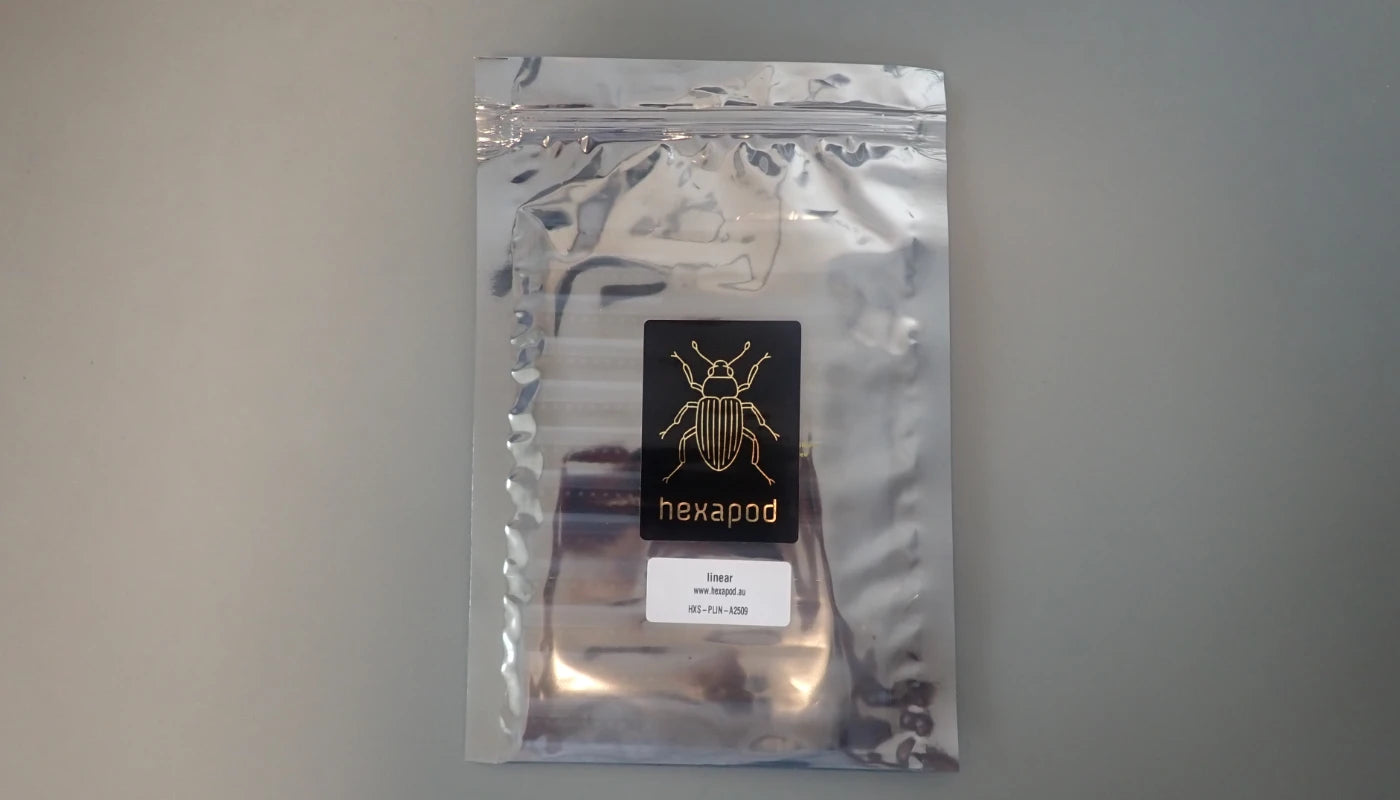

SMD Starter Kit: Linear

SMD (Surface Mount Device) starter kit of common linear components. Diodes, LEDs, transistors, voltage regulators and op-amps are all ready to provide humble service to your next grand project. The full kit has 575 parts in total.

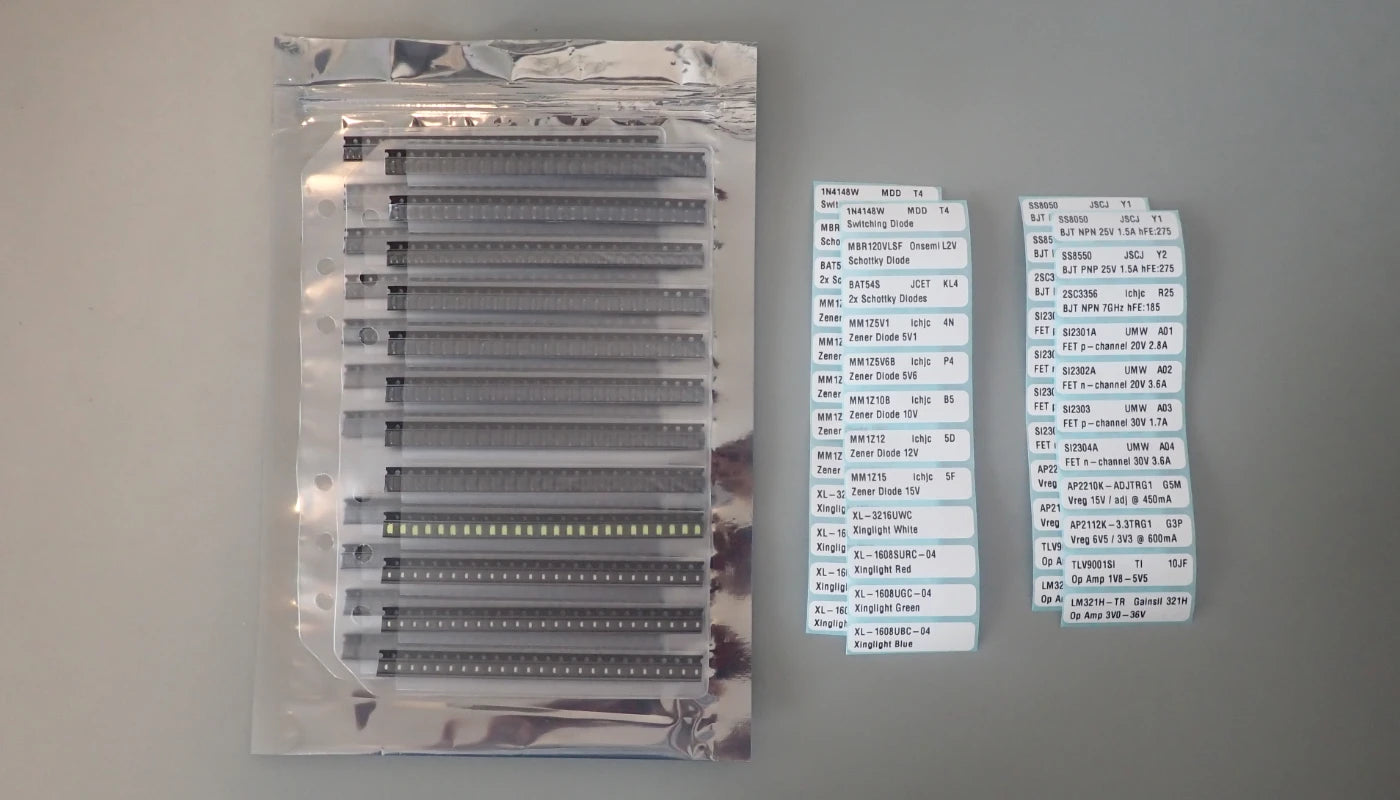

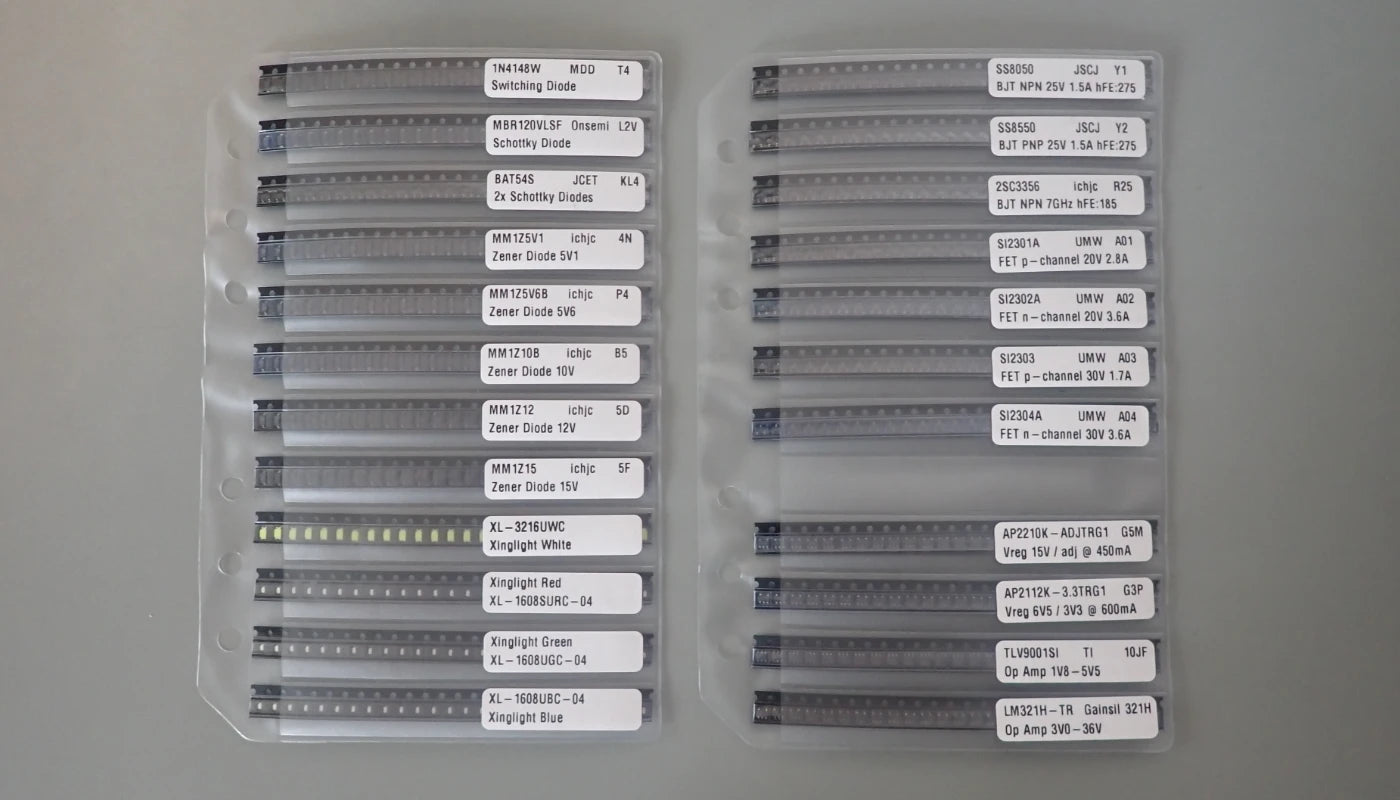

The components are supplied in translucent pages for a B5 SMD ring binder. The kit includes two separate sets of stickers so you can choose your desired order for the components.

part number	HXS-PLIN-A2509
data sheets	on github

Signal Diodes

Part 1N4148W the standard small signal silicon diode. Part MBR120VLSF is a Schottky diode chosen for its low forward voltage, and good for reverse polarity protection in prototypes. Part BAT54S is two diodes connected in series in a small SOT‑23 package.

count	part number	package	marking	name	manufacturer
25	1N4148W	SOD‑123	T4	Switching Diode	MDD
25	MBR120VLSF	SOD‑123FL	L2V	Schottky Diode	Onsemi
25	BAT54S	SOT‑23	KL4	2x Schottky Diode	JCET

Zener Diodes

A set of Zener diodes with reverse breakdown voltages matching the common supply voltages. Note that when lower voltage Zener diodes are used with small reverse currents, their breakdown voltage tends to be lower. For a few milliamps, a 5V1 diode will be more like 5V0 (TTL supply) and a 5V6 diode more like 5V5 (USB supply).

25	MM1Z5V1	SOD‑123	4N	Zener Diode 5V1	ichjc
25	MM1Z5V6B	SOD‑123	P4	Zener Diode 5V6	ichjc
25	MM1Z10B	SOD‑123	B5	Zener Diode 10V	ichjc
25	MM1Z12	SOD‑123	5D	Zener Diode 12V	ichjc
25	MM1Z15	SOD‑123	5F	Zener Diode 15V	ichjc

LEDs (Light Emitting Diodes)

The white LED is supplied in a larger 1206 package to serve as an illuminator. The red, green and blue are supplied in 0603 packages to serve as indicators.

count	part number	package	name	manufacturer
25	XL-3216UWC	1206	White LED	Xinglight
25	XL-1608SURC-04	0603	Red LED	Xinglight
25	XL-1608UGC-04	0603	Green LED	Xinglight
25	XL-1608UBC-04	0603	Blue LED	Xinglight

Transistors

Parts SS8050 and SS8550 are standard BJT power transisistors defined in the 1980s. These parts supersede older devices like 2N2222, as the SS8050 has both higher current rating and flatter current gain curve. Part 2SC3356 is a common high frequency signal transistor suitable for RF applications. Parts SI230X are trench MOSFETs with good power handling capability, suitable for use as load switches.

count	part number	marking	name	manufacturer
25	SS8050	Y1	BJT NPN 25V 1.5A hFE:275	JSCJ
25	SS8550	Y2	BJT PNP 25V 1.5A hFE:275	JSCJ
25	2SC3356	R25	BJT NPN 7GHz hFE:185	ichjc
25	SI2301A	A01	FET p‑channel 20V 2.8A	UMW
25	SI2302A	A02	FET n‑channel 20V 3.6A	UMW
25	SI2303	A03	FET p‑channel 30V 1.7A	UMW
25	SI2304A	A04	FET n‑channel 30V 3.6A	UMW

Voltage Regulators

Part AP2210K‑ADJTRG1 has an adjustable output voltage, with a maximum of 15V input. Part AP2112K-3.3TRG1 has a fixed 3V3 output, to supply common microcontroller and logic devices. Both parts manufactured by Diodes Incorporated.

count	part number	marking	package	name
25	AP2210K‑ADJTRG1	G5M	SOT‑23‑5	Vreg 15V / adj @ 450mA
25	AP2112K‑3.3TRG1	G3P	SOT‑23‑5	Vreg 6V5 / 3V3 @ 600mA

Opamps (Operational Amplifiers)

Part TLV9001SI is a CMOS opamp with a maximum working voltage of 5V5. This part includes a shutdown (S) pin to disable the output when desired, so it can also serve as an analogue switch. Part LM321H is a high voltage BJT opamp, good for up to 36V.

count	part number	marking	package	name	manufacturer
25	TLV9001SI	10JF	SOT‑23‑6	OpAmp 1V8-5V5	TI
25	LM321H‑TR	321H	SOT‑23‑5	OpAmp 3V0-36V	Gainsil
